| Developing domestic S/W |
|
 |

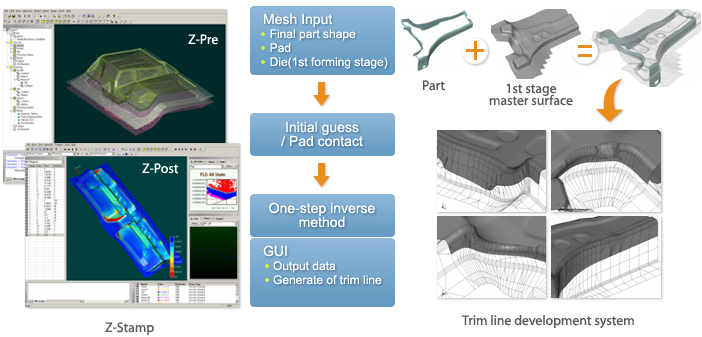

S/W1 |
: Z-Stamp |
|
|
| 1. |
Sheet metal stamping analysis s/w - specialized S/W for springback & post-stamping process analysis |
| 2. |
Quick time within acceptable accuracy |
| 3. |
Multi-stage forming - Easy to insert a new stage |
|
|
|
S/W2 |
: Tim line development system(Software system for developing optimum trim line and blank outline) |
|
|
| 1. |
Required only final part design and master surface of target tool(draw) |
| 2. |
No need for additional tool modeling and simulation for flanging, restrike, etc. |
| 3. |
Plastic deformation theory is considered to determine developed trim line |
| 4. |
Applicable to back-draft(under-cut) feature |
|
|
|
 |
| |
|
|
|
|
|
